8-40V to 12V 6A/10A DC-DC Buck-Boost Converter

8-40V to 12V DC-DC Buck-Boost Converter

Stabilize a changing DC supply to a regulated 12V output. Choose the 6A/72W or 10A/120W version to match the connected load. This module can step voltage up or down within its stated 8-40V input range.

Specifications

• Input: 8-40V DC for 12V, 24V and 36V nominal systems
• Output: regulated 12V DC
• Options: 6A/72W or 10A/120W maximum output

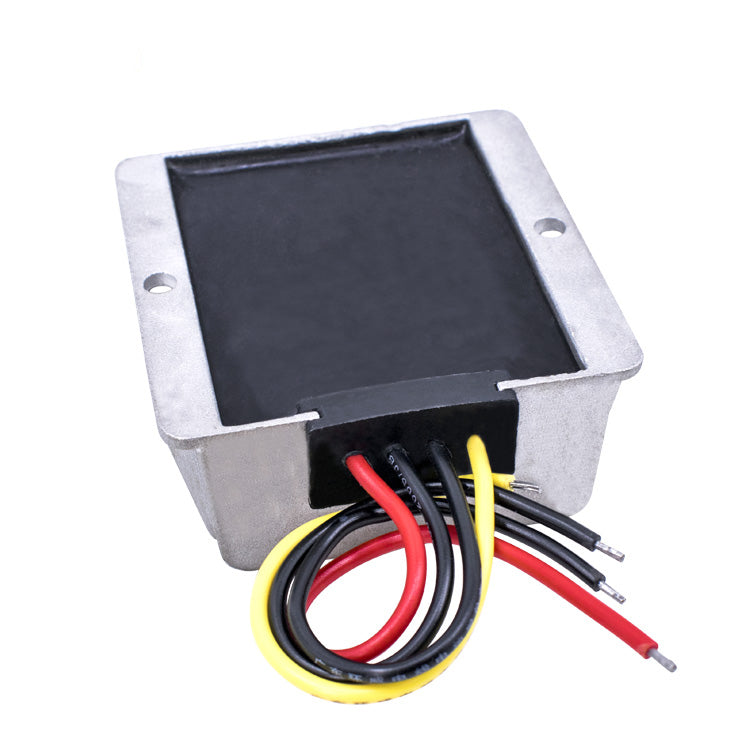

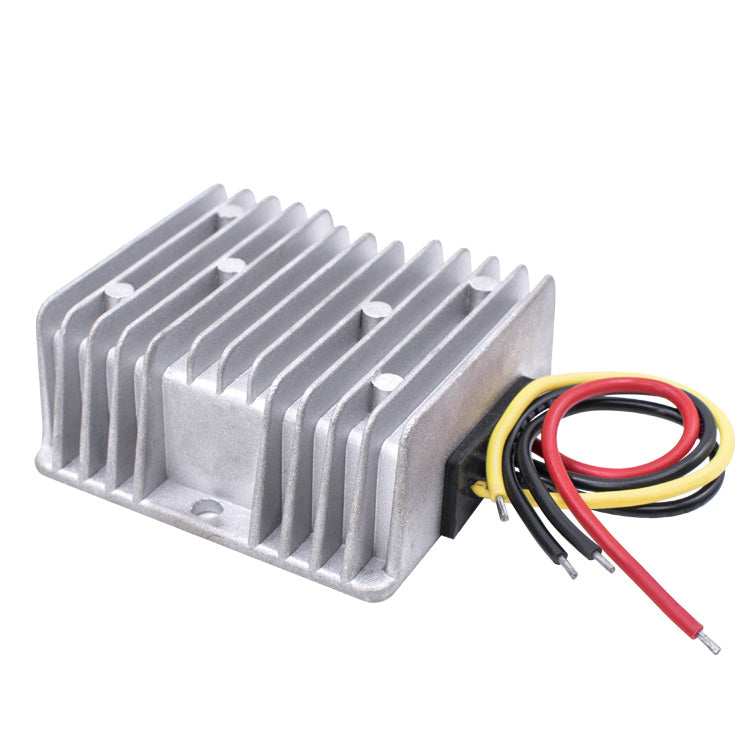

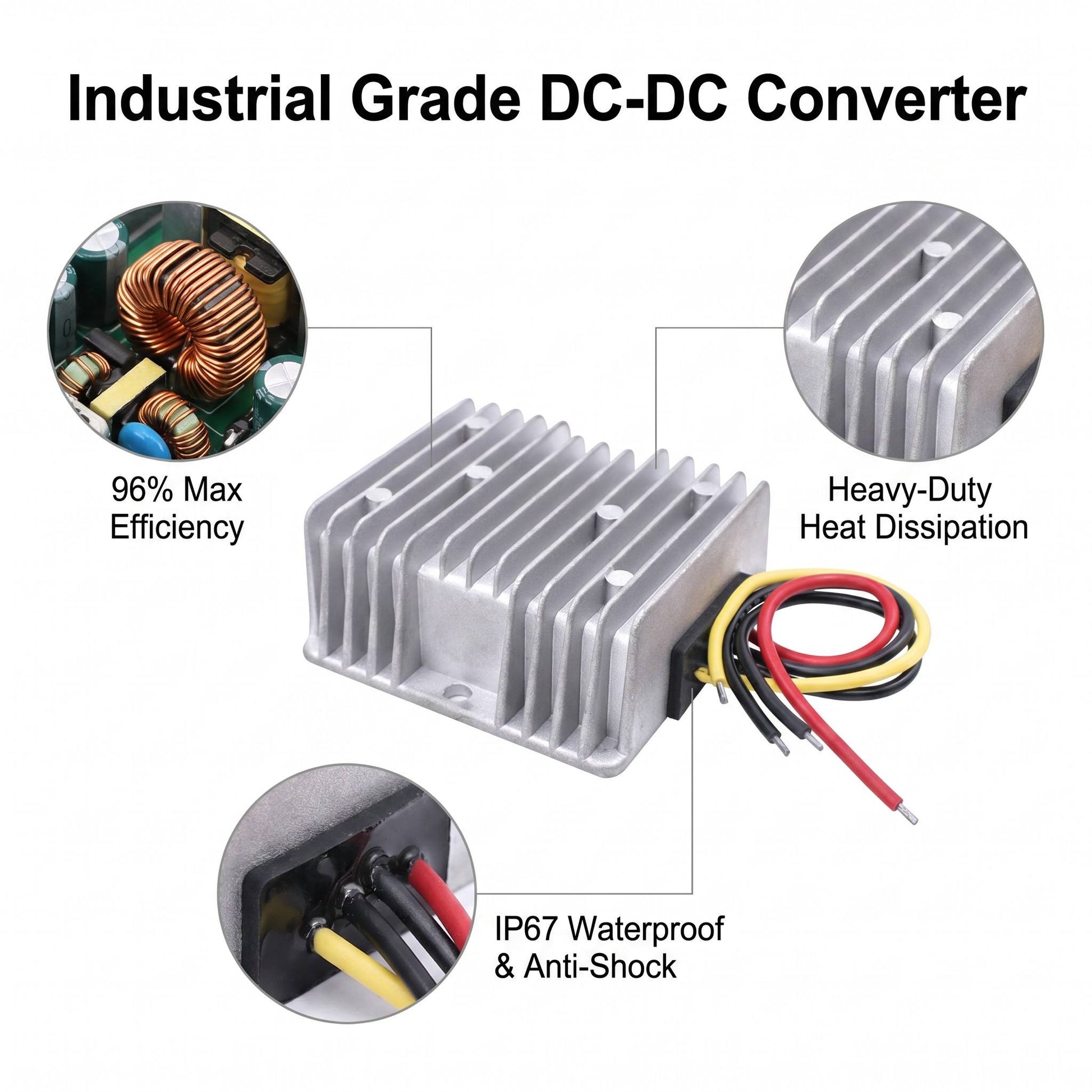

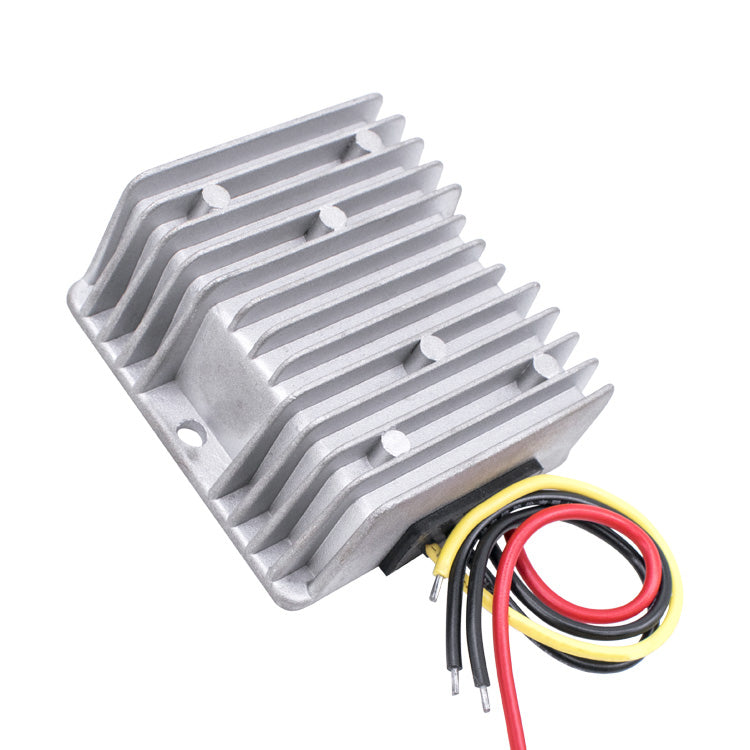

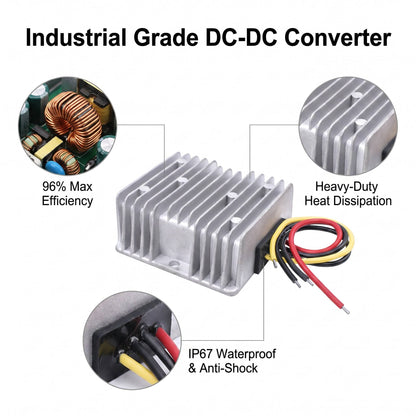

• Construction: finned aluminum housing with sealed epoxy potting
• Environmental rating: IP67

Protection and installation

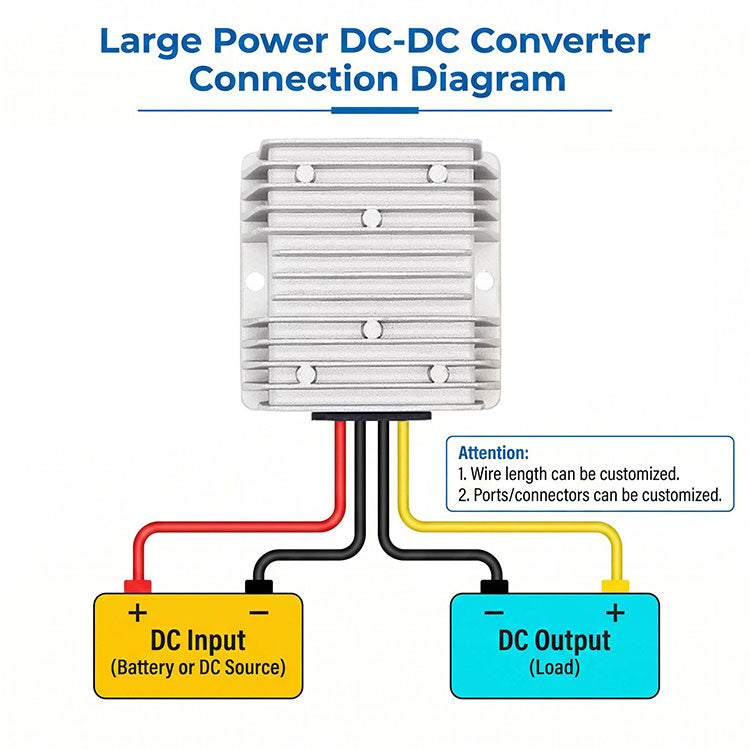

Built-in protection covers over-temperature, short circuit, over-voltage and over-current conditions. The color-coded leads and mounting flanges support fixed installation. Verify polarity and confirm that the connected load remains within the selected variant's voltage, current and power limits.

Suitable applications

Use with compatible 12V loads in vehicle, solar, industrial and electronics installations where the source voltage can vary above or below 12V. This is a voltage converter, not a battery charger.

Processing and supplier availability

Processing time is 7-10 business days. This item ships directly from our supplier, with a maximum supplier lead time of 10 business days. Supplier availability is confirmed after your order is placed. If the item is temporarily unavailable, we will contact you. You may continue waiting or cancel the order for a full refund.
